电池特性 Battery Characteristics
1.测试条件 Test Conditions
Temperature温度:25℃
Relative Humidity: 相对湿度:≤75%±5
Atmosphere pressure大气压力:1atm
2.标准充放电特性 Standard Charge/Discharge Characteristics
在上述条件下测试:The test should be conducted under the condition below:
在环境温度25℃的条件下,以0.2CmA恒流充电,当电池端电压达到充电限制电压4.20V后,转为恒压充电,当电流值小于0.05CmA时终止充电并放置不超过10分钟,再以0.2CmA电流恒流放电到2.75V。
In a temperature of 25℃, CC charge 0.2CmA / voltage up to 4.20V; Then CV charge.Terminate charging when the charging current value is less than 0.05CmA.Rest for no more than 10 minutes, Discharge CC at 0.2CmA to 2.75V.
3.快速充放电特性:在环境温度25℃的条件下,以1.0CmA恒流充电,当电池端电压达到充电限制电压4.20V时,转为恒压充电,当电流值小于0.05CmA时终止充电并放置不超过10分钟,再以1.0CmA电流恒流放电到2.75V。
Fast Charge/Discharge : Temperature 25℃, CC charge at 1.0CmA to 4.20V; turn to CV charge; Terminate charging when the charging current value is less than 0.05CmA, rest for no more than
10 minutes, then at 1.0CmA CC discharge to 2.75V.
4.工作温度特性:工作温度范围:﹣20℃—60℃。
Temperature Characteristics : Working temperature range: ﹣20℃—60℃。
5.储存温度:20℃±1
Storage temperature:20℃±1

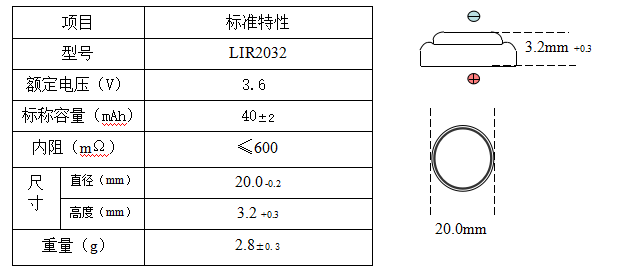

6.规格特性表 Spec Chart
